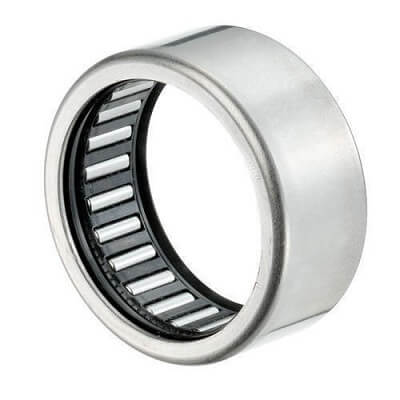

Needle Roller Bearing

Needle Roller Bearing

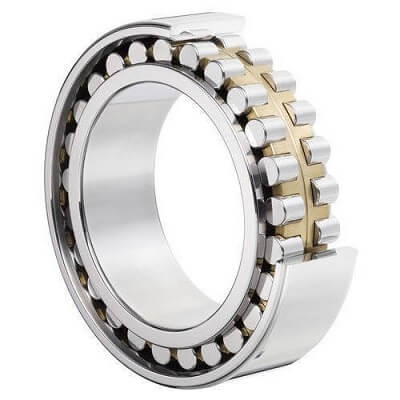

Cylinder

Cylinder

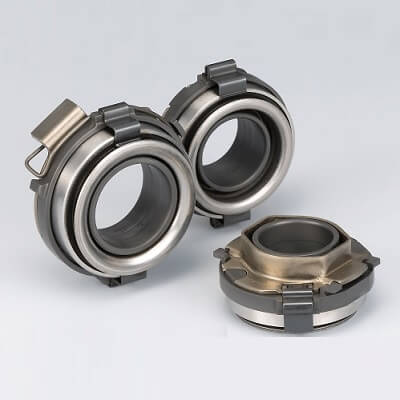

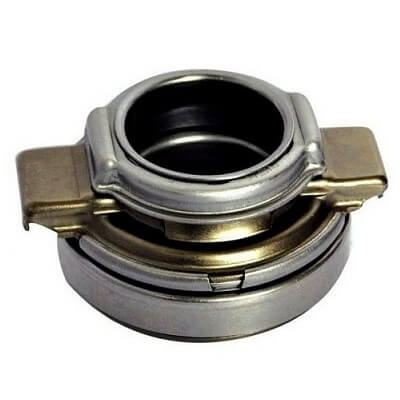

NSK - Clutch

NSK - Clutch

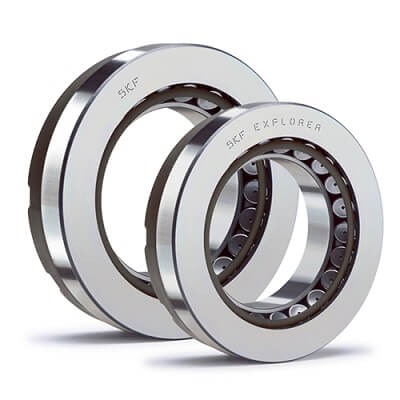

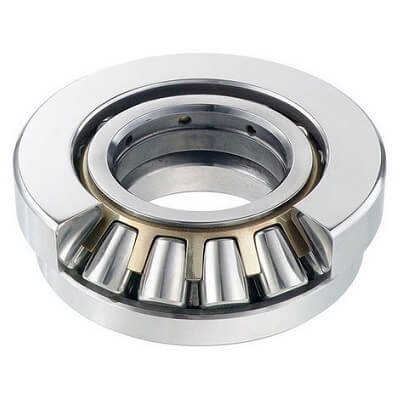

Thrust Bearing

Thrust Bearing

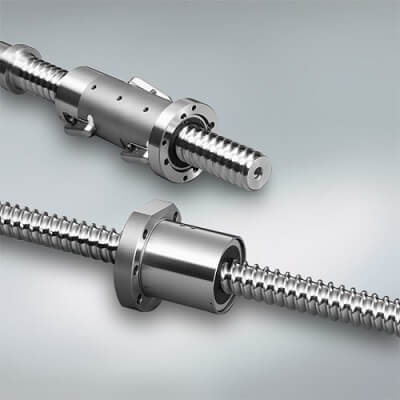

NSK - Ball Screws

NSK - Ball Screws

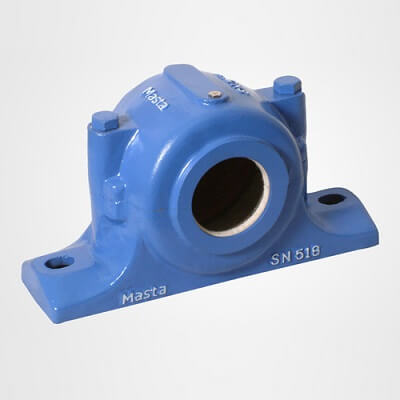

Masta

Masta

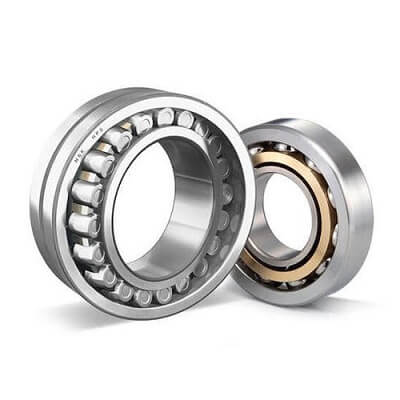

NSK

NSK

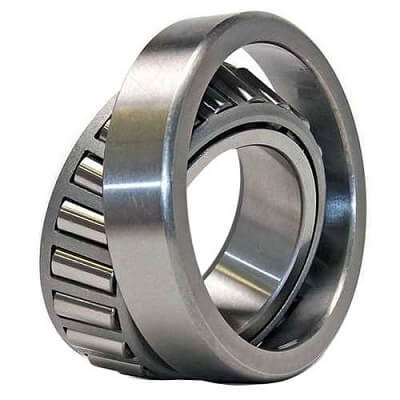

Taper Roller Bearings

Taper Roller Bearings

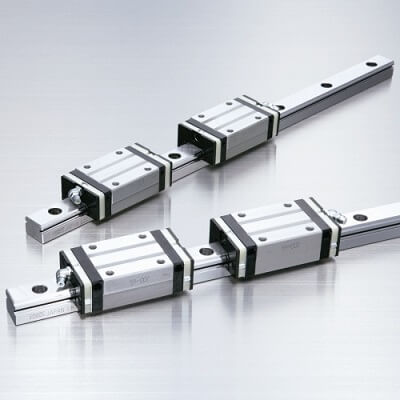

Linear Motion Guide

Linear Motion Guide

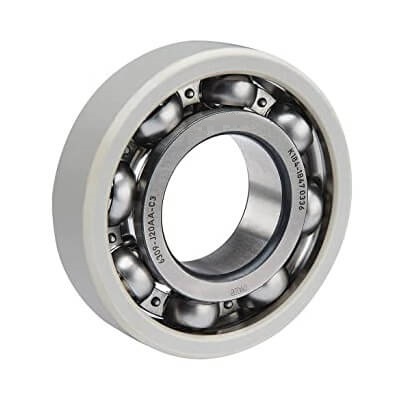

FAG

FAG

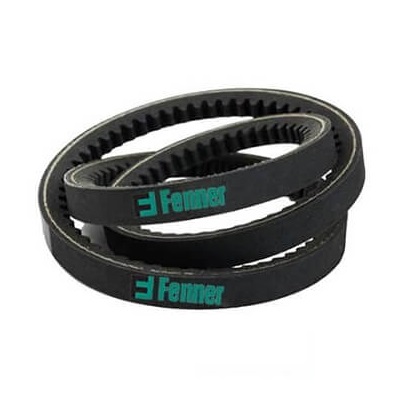

Fenner

Fenner

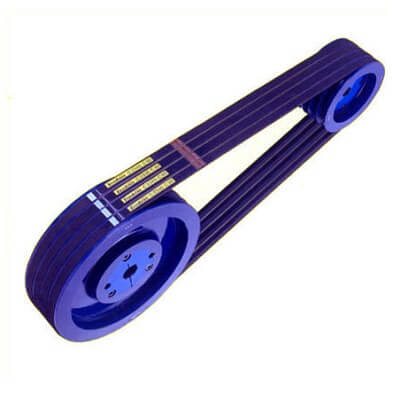

Fennerandeco

Fennerandeco

inafag

INA FAG

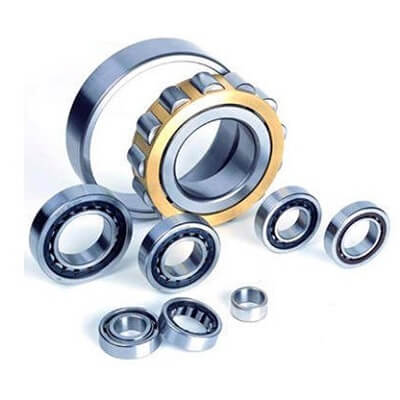

koyo

KOYO

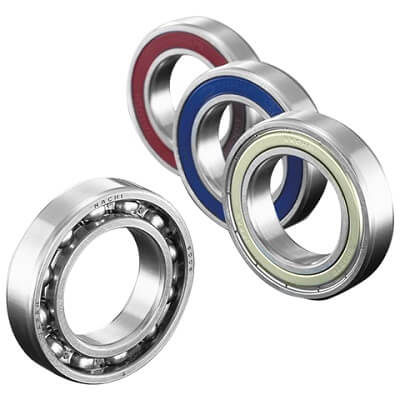

nachi

Nachi

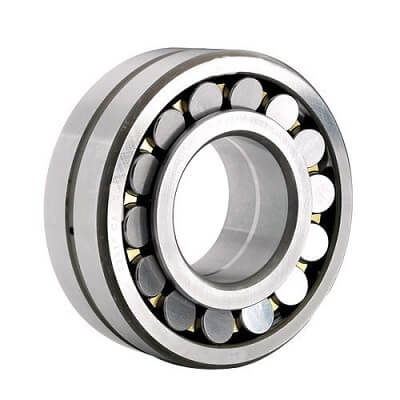

nbc

NBC

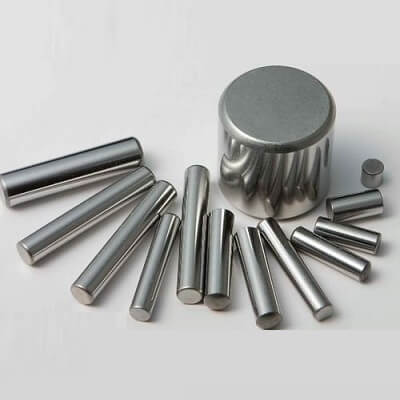

needles

Needles

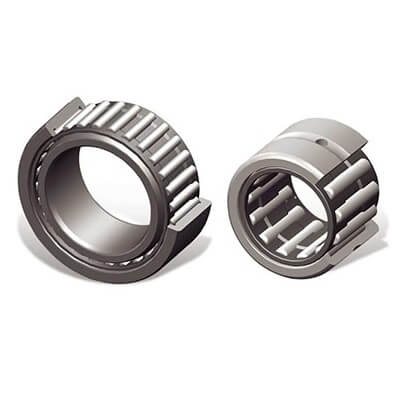

nrb

NRB

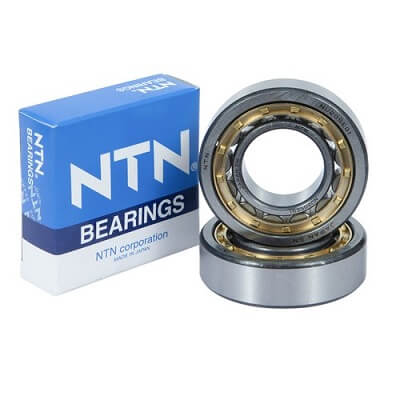

ntn

NTN

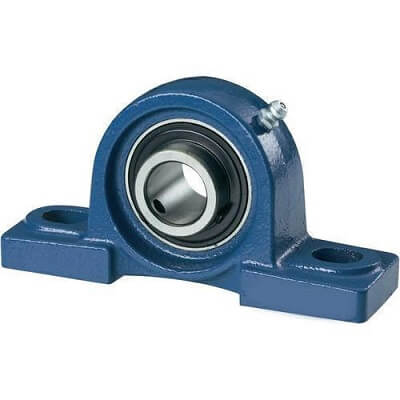

ntn-upc

NTN UPC

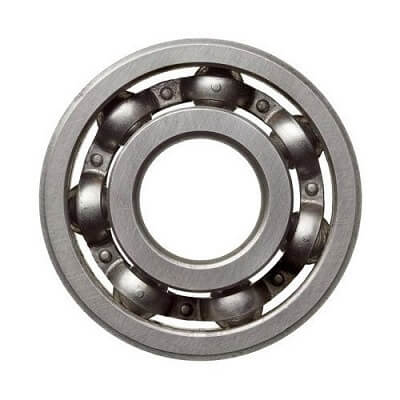

rhp

RHP

skf

SKF

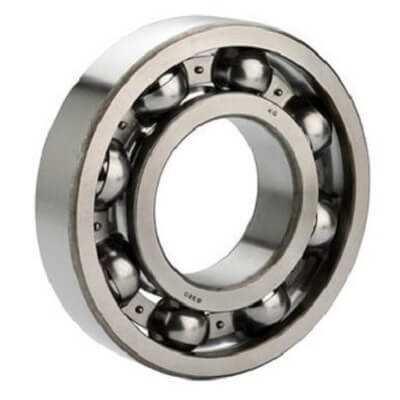

tata

TATA

thrust

Thrust

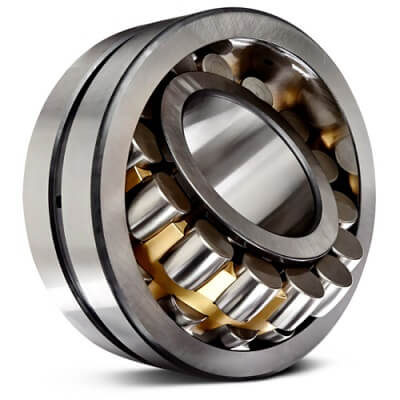

timken

Timken

tr

TR

Selecting Bearing Clearance

Operating Condition

Clearance

Clearance fit on both inner and outer ring. Low to no axial loading. No preload. Low speeds. Little tolerance for play. Low temperature.

C2

Low torque. Standard loads. Light preload. Slight interference fit on inner or outer ring, Low to not both. medium speeds. Average temperature.

CN
Very low torque. High loads. Heavy interference fits. High temperature. Preloaded. C3,C4,C5

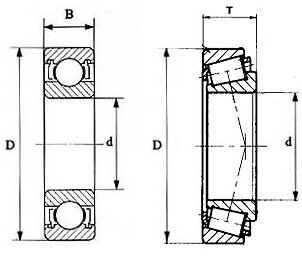

d = Inside diameter
D = Outside diameter
B/T = Width diameter


C2 = Clearance less than normal
C3 = Clearance greater than normal
C4 = Clearance greater than C3

Bearings Dimension

Extra Light Bearings

Number Bore
mm
O.D.
mm
Thickness
mm
6000-2RS 10 26 8
6001-2RS 12 28 8
6002-2RS 15 32 9
6003-2RS 17 35 10
6004-2RS 20 42 12
6005-2RS 25 47 12
6006-2RS 30 55 13
6007-2RS 35 62 14
6008-2RS 40 68 15
6009-2RS 45 75 16
6010-2RS 50 80 16
6011-2RS 55 90 18
6012-2RS 60 95 18
6013-2RS 65 100 18
6014-2RS 70 110 20
6015-2RS 75 115 20

Light Bearings

Number Bore
mm
O.D.
mm
Thickness
mm
6200-2RS 10 30 9
6201-2RS 12 32 10
6202-2RS 15 35 11
6203-2RS 17 40 12
6204-2RS 20 47 14
6205-2RS 25 52 15
6206-2RS 30 62 16
6207-2RS 35 72 17
6208-2RS 40 80 18
6209-2RS 45 85 19
6210-2RS 50 90 20
6211-2RS 55 100 21
6212-2RS 60 110 22
6213-2RS 65 120 23
6214-2RS 70 125 24
6215-2RS 75 130 25
6216-2RS 80 140 26

Medium Bearings

Number Bore
mm
O.D.
mm
Thickness
mm
6301-2RS 12 37 12
6302-2RS 15 42 13
6303-2RS 17 47 14
6304-2RS 20 52 15
6305-2RS 25 62 17
6306-2RS 30 72 19
6307-2RS 35 80 21
6308-2RS 40 90 23
6309-2RS 45 100 25
6310-2RS 50 110 27
